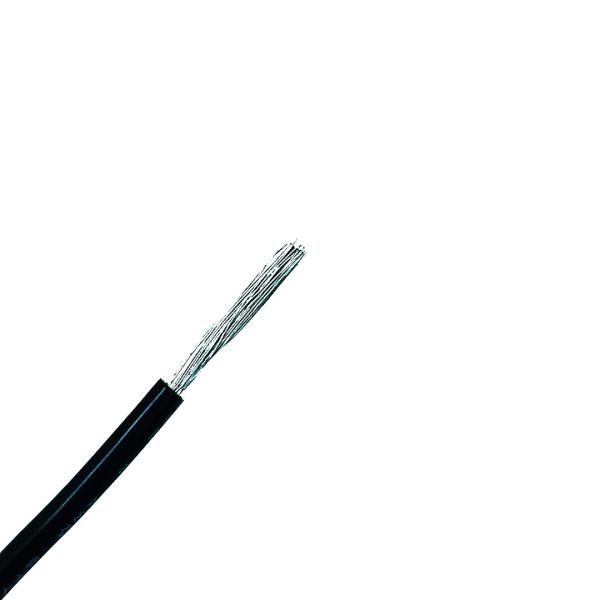

UL 1332 FEP material 1 X 30AWG 200C 300V high temperature tinned copper wire
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758 & UL 1330
Product character:
Flame rated : FT2
Tensile strength:≥17.2MPa Elongation:≥200%
Aged condition:232±1℃×168H
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
| Conductor | Tinned copper stranded |
| Cross section | 30AWG |
| Construction | 7/0.10mm |
| Strand Dia.(Ref.) | 0.30mm |
| Insulation | FEP |
| Nom.Thickness | 0.33mm |
| Min.Thickness | 0.30mm |
| Insulation Dia. | 1.00±0.08mm |
| Insulation colour | Per request |
Insulation:FEP
Conductor : Tinned copper stranded
Construction
Insulation:FEP
Jacket : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL1332
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 200℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance |
| | |
| Rated Temperature | 200℃ |
| Voltage rating | 300V |
| Max.conductor DC resistance(20℃) | 381Ω/km |
| Dielectric Strength AC | 2.0kV/1min |
