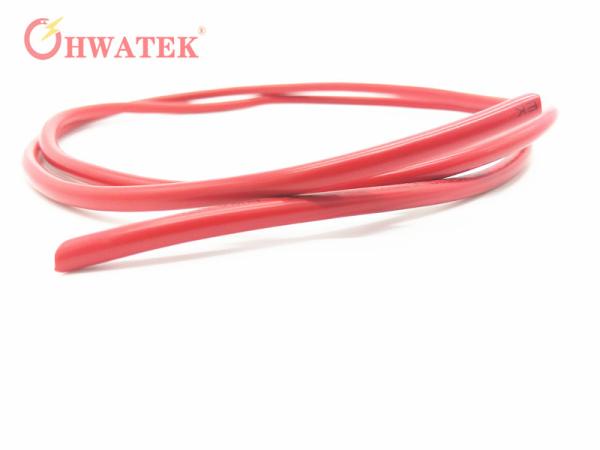

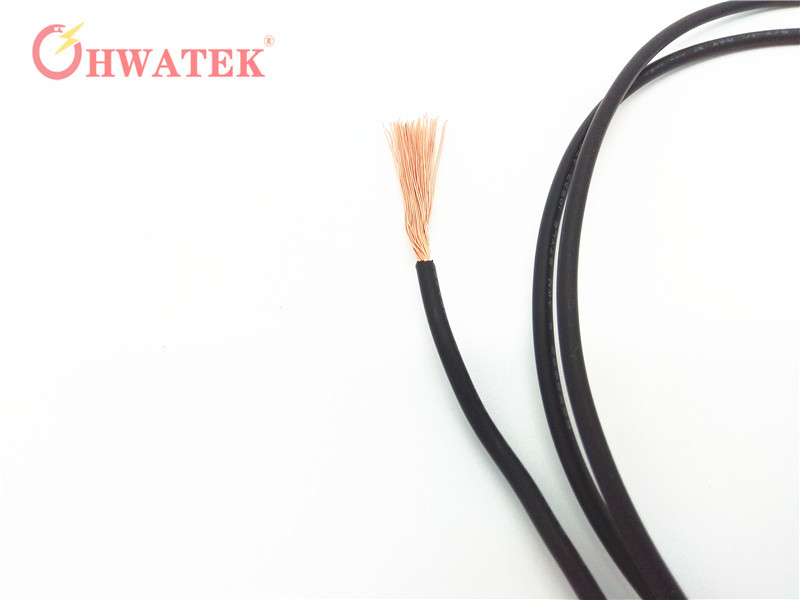

UL11131 24AWG FEP Jacket Silver Plated Copper Stranded Cable 600V 200℃ Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated : VW-1
Tensile strength:≥17.2 MPa Elongation:≥200%
Aged condition:232±2℃×168H
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction |
|
| Conductor | Silver Plated Copper |
| Cross section | 24AWG |
| Construction | 7/0.20mm |
| Strand Dia. | 0.60mm |
| Insulation | FEP |
| Nom.Thickness | 0.25mm |
| Min.Thickness | 0.22mm |
| Insulation Dia. | 1.15±0.05mm |
| Insulation colour | BLACK |
Insulation:FEP
Conductor : Silver Plated Copper
Construction:
Jacket : per request
Jacket: FEP
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL11331
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 200℃
Flame: FT1
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance |
|
| Rated Temperature | 200℃ |
| Voltage rating | 600V |
| Max.conductor DC resistance(20℃) | 94.2Ω/km |
| Dielectric Strength AC | 2.0kV/1min |
| Mechanical Performance |
|
| Insulation |
| Material | FEP |
| Tensile strength | ≥17.2MPa |
| Elongation | ≥200% |
| Aged condition | 232±2℃×168H |
| Percent of original tensile strength | ≥75% |
| Percent of original elongation | ≥75% |
