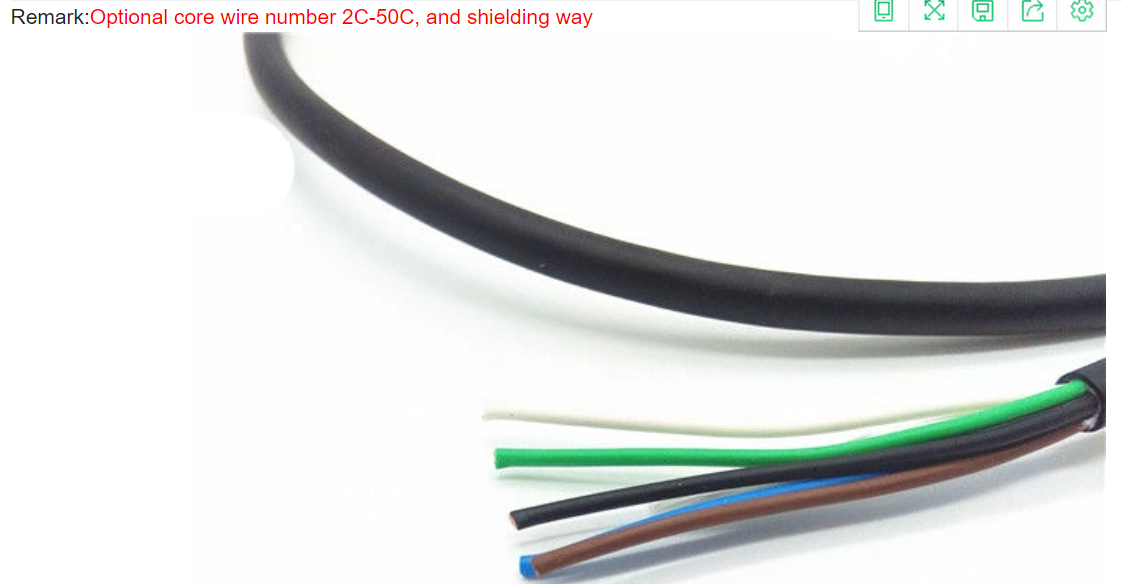

Industrial Control Braided Hook Up Wire Cable With PU Jacket UL20940

  • 1
  • 2

Brand Name : Hwatek

Model Number : UL

Certification : UL,ROHS, REACH

Place of Origin : China

MOQ : 3050M

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000KM Per month

Delivery Time : 2-3W

Packaging Details : carton/pallet

Application : Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.

Jacket : PU

Insulation material : PVC, SR-PVC, PE or PP

Conductor : Tinned or bare copper, stranded or solid conductor

Rated voltage : 600V , 1000V

Rated temperature : 80ºC

Contact Now

UL20940 Industrial Control Braided Hook-Up Wire Cable

Application: For internal wiring of electronic equipment and appliance.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Constructure:
Tinned or bare copper, stranded or single conductor, 32-4/0AWG
PVC, SR-PVC, PE or PP insulation.
Two or more single-core wires is twisted into pair or cabling again
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket(Halogen free material available)
Technical parameter:
Rated temperature : 80ºC
Rated Voltage: 600V , 1000V

Product Number Conductor Insulation Shield Jacket Max. Cond. Resistance (200C)
Ω/km
core Size AWG NO./mm Conductor
Dia .
mm		 Nom. Thickness
mm		 Nom. Dia.
mm		 Material Coverage Nom. Thick. mm Nom. Dia.
mm
HT20940**101 10C 20 26/0.16 0.81 0.76 2.4 Mylar 80% 0.76 8.40 35.2
HT20940**102 7C 18 41/0.16 1.02 0.76 2.7 AL 95% 0.76 9.70 22.2
HT20940**103 4C 14 41/0.254 1.61 0.76 3.1 Mylar 75% 0.76 9.50 8.78
HT20940**104 3C 12 65/0.254 2.03 0.76 3.6 AL 85% 0.76 11.00 5.353
HT20940**105 2C 10 65/0.32 2.57 0.76 4.2 AL 85% 0.76 10.50

Industrial Control Braided Hook Up Wire Cable With PU Jacket UL20940
