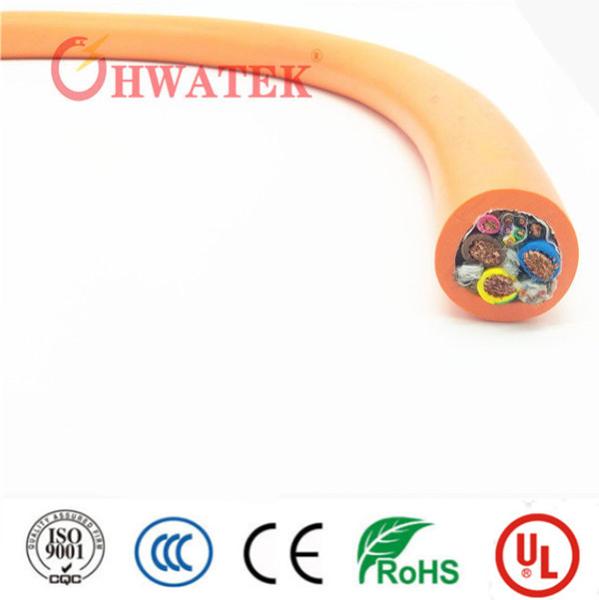

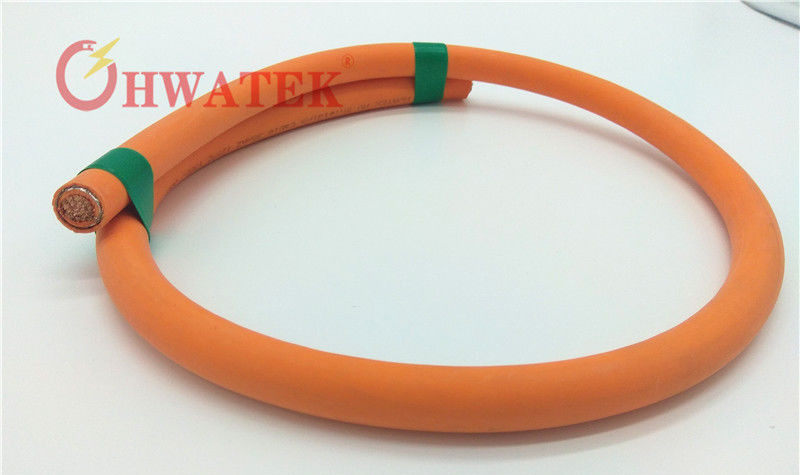

Flame Retardant 450/750V AC And DC Multi Core Hv EV Power Battery Electric Electrical Charging Wire Cables
Product Description
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. | Product Types |
| CQC16011142377 | EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V |
Reference standard:GB/T 33594-2017
Product Category:
Product Category:
AC:EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction:
Rated temperature:-40 ~ +90°C
Rated voltage:AC450/750V
conductor:Stranded bare or tinned copper
Insulation material:TPE
Sheath material:TPU
Flexible Construction, Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress, IEC60332-1 flammability test, minimum bending radius 5xOD, easily installation
Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Structural parameter table:
| Category | Wire specifications | Reference current (A) | Diameter unshielded (mm) |
| TPE | PU |
| EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V | 3×2.5+2×0.75 | 18 | 12.7 | 11.1 |
| 3×4+2×0.75 | 25 | 14.4 | 12.8 |
| 3×6+2×0.75 | 34 | 16.3 | 14.5 |
| 5×2.5+2×0.75 | 18 | 15.3 | 13.7 |
| 5×4+2×0.75 | 25 | 17.8 | 16.0 |
| 5×6+2×0.75 | 34 | 19.8 | 17.8 |
| 5×10+2×0.75 | 50 | 22.9 | 20.7 |
| 5×16+2×0.75 | 67 | 27.5 | 25.1 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
