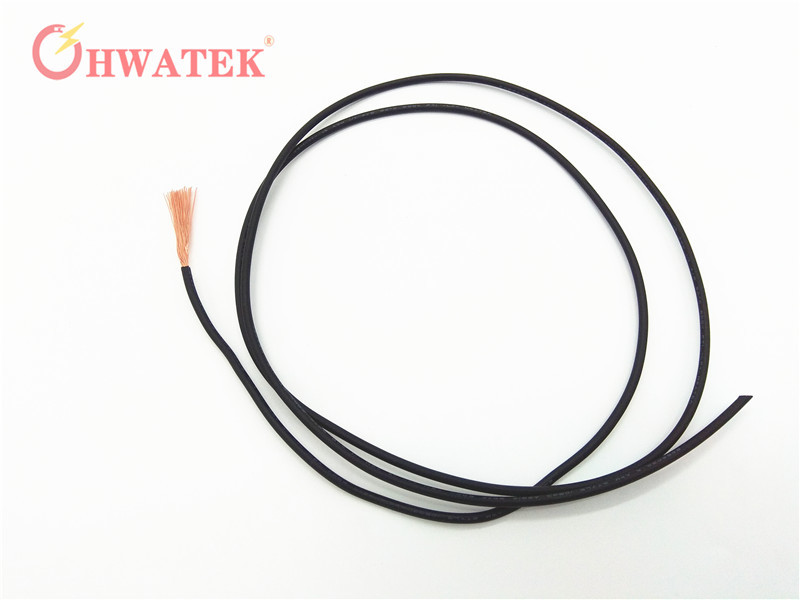

Bare Copper Stranded 1 AWG 600V 105℃ PVC Jacket UL1232 single wire
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated :FT1
Tensile strength:≥10.3 MPa
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 1AWG |
| CONDUCTOR | Material | Bared copper stranded |
| Size | 19/1.70mm |
| O.D.(Ref) | 8.60mm |
| INSULATION | Material | PVC |
| Min.average thickness | 1.98mm |
| Min.thickness at any point | 1.78mm |
| O.D. | 12.80±0.50mm |
Insulation:PVC
Conductor : Bare copper
Construction
Insulation: per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:
RoHS,REACH Compliant,
Technical data UL1232
Rated voltage:600V
Rated Temperature: 105℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| PHYSICAL PROPERTIES |
| Tensile strength: | ≥10.3MPa |
| Elongation: | ≥100% |
| Aged condition: | 136±1℃×168h |
| Percent of original tensile strength: | ≥70% |
| Percent of original elongation: | ≥65% |
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
