Brand Name : HWATEK
Model Number : UL2464
Certification : UL,CUL, CE,ROHS, REACH
MOQ : 6.1KM
Price : Negotiable
Payment Terms : T/T
Delivery Time : 2-3W
Packaging Details : carton/pallet
Product Name : UL2464
Size : 40AWG MIN
Conductor : solid or stranded, tinned or bare copper.
Core Number : Two or more singles, twisted pairs of groups of twisted singles twisted together or singles or groups of singles may be laid parallel to form flat, oval or round cable.
Standard : UL758,UL1581, UL2556
Insulation material : PVC,PE, SRPVC, PP, FOAM-PE
Shield material : copper, AL-Mylar, tinned copper
Sheath material : PVC
Application : Internal wiring of electronic equipment and appliances
Rated Voltage : 300V
Temperature : -40℃-80℃
Flame : VW-1,FT1,FT2
Free Sample : YES
UL2464 Multiple-conductor cable using non-integral jacket, 80 ℃, 300 V VW-1, 60 ℃ or 80 ℃ Oil
Construction
Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, FOAM-PE
Shield or Braid: Optional
Jacket: PVC
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300 V
Rated Temperature:-40℃-80℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Voltage withstand test:AC 2.0kV/1min
Printing :E258652 AWM STYLE 2464 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL, CE
Packing and Shipping
![]() |

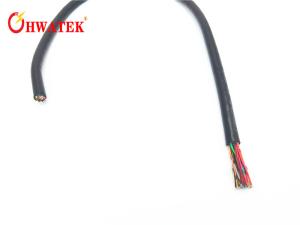

UL2464 Electric Flex Cable With Multi Conductor PVC / PE / SRPVC Insulation Images |
