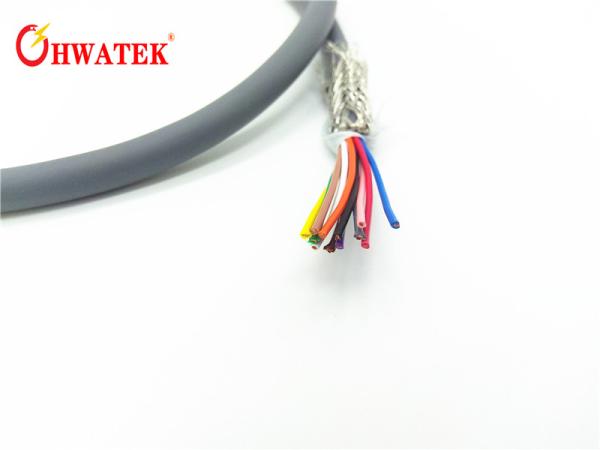

TPE Hook Up Cable Electrical Wire With Multi Conductor 28 Awg / 36 AWG UL20328

  • 1
  • 2
  • 3

Brand Name : HWATEK

Model Number : UL20328

Certification : UL,CUL, CE,ROHS, REACH

MOQ : 6.1KM

Price : Negotiable

Payment Terms : T/T

Delivery Time : 2-3W

Packaging Details : carton/pallet

Product Name : UL20328

Size : 36 AWG min.

Conductor : solid or stranded, tinned or bare copper.

Core Number : Two or more individually insulated conductors or groups of insulated conductors cabled together to form a round cable. A flat or oval cable may also be constructed with not more than three rows of single conductors or groups of conductors. The length of la

Standard : UL758,UL1581, UL2556

Insulation material : PVC,TPE, SRPVC, XLPE

Shield material : copper, AL-Mylar, tinned copper

Sheath material : TPE

Application : External wiring.

Rated Voltage : 600V

Temperature : -40℃-105℃

Flame : VW-1,FT1,FT2

Free Sample : YES

Contact Now

UL20328 Multiple-conductor cable using TPE jacket, 105℃, 600V VW-1, 60℃ Oil

Construction

Conductor : Solid or Stranded
Insulation: PVC,TPE, SRPVC,XLPE

Shield or Braid: Optional

Jacket: TPE

Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

Technical data
Rated voltage:600V

Rated Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ Oil

Voltage withstand test:AC 2.5kV/1min

Printing :E258652 TPE Hook Up Cable Electrical Wire With Multi Conductor 28 Awg / 36 AWG UL20328 AWM STYLE 20328 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
