Retractable Spiral Power Cable , 2 Core Coiled Electrical Cord High Flexibility，PUR sheath ,UL20549

Product Categories
HWATEK WIRES AND CABLE CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Retractable Spiral Power Cable , 2 Core Coiled Electrical Cord High Flexibility，PUR sheath ,UL20549

Brand Name : HWATEK

Model Number : Spiral cable with outer PUR sheath ,UL20549 unshielded

Certification : UL,CUL, CE,ROHS, REACH

MOQ : 6.1KM

Price : Negotiable

Payment Terms : T/T

Delivery Time : 2-3W

Packaging Details : carton/pallet

Place of Origin : China

Product Name : Spiral cable with outer PUR sheath , UL20549,unshielded

Conductor : Strand Tinned or bare copper.

Core Number : 2 cores and above

Standard : STYLE PAGE 20549 FOR UL758 ,UL1581, UL2556,IE60228 CL5

Insulation material : PP

Sheath material : PUR ,LSOH

Application : Lighting industry,Data installations,Shops,Telecommunication Etc.

Rated Voltage : 300V

Temperature : -40℃-80℃

Flame : FT2

Contact Now

Spiral cable with outer TPE sheath ,UL&cUL Certificated, unshielded

Construction

Conductor : Stranded Tinned or bare copper.
Insulation: PP

Jacket: PUR

Application:Lighting industry,Data installations,Shops,Telecommunication Etc.

Standards:International: UL758 , UL1581, UL2556,IEC60228 CL5

RoHS,REACH Compliant,

Technical data
Rated voltage:300 V
Rated Temperature:-40℃-80℃

Flame: FT2

Voltage withstand test:AC 2.0kV/1min

Properties

High restoring forces
Very high flexibility
flame-retardant

Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø

Specifications

art No.

No. coresxcross-sec

AWG

Outer dia.

App.mm

Wheight App.

Kg/km
HT1904014 3C×16AWG 6.80±0.15 74

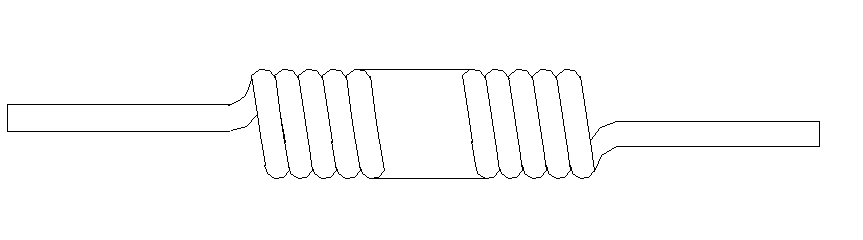

Cross Section

Retractable Spiral Power Cable , 2 Core Coiled Electrical Cord High Flexibility，PUR sheath ,UL20549

Packing and Shipping

  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
